01 /

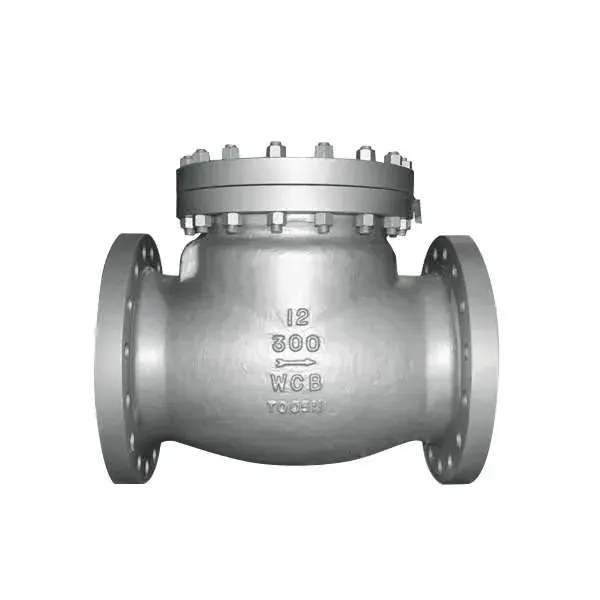

Swing Check Valves
Swing check valves manufactured to BS 1868 and tested to API 598.
View details ↗
PRODUCT OVERVIEW
Check Valves
Swing, double door, silent and ball check valves for automatic non-return duties.
- Four check valve constructions for different pipeline duties
- Flow direction, orientation and installation clearance
- Closing response selected for the pump and piping system
04 PRODUCT OPTIONS
Explore check valves.
02 /

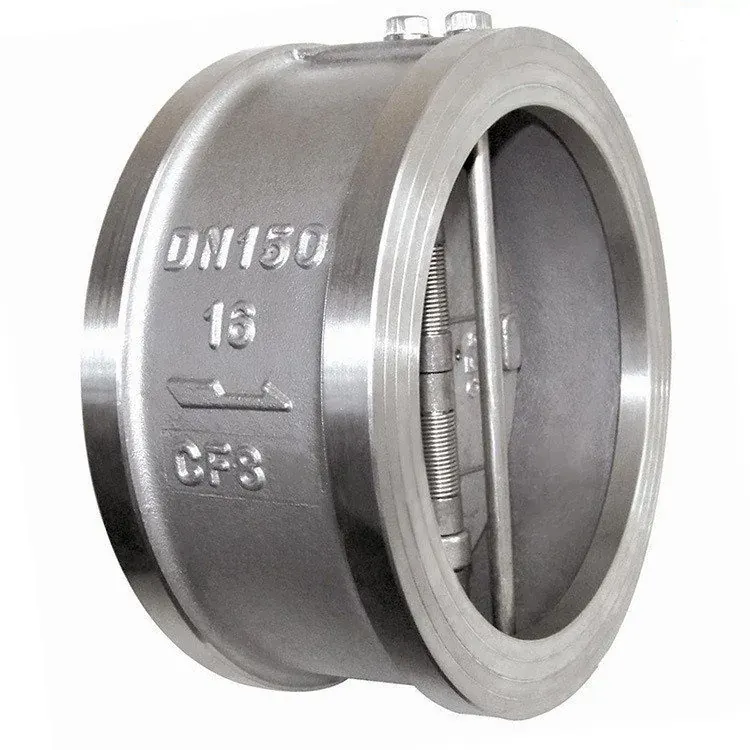

Double Door Check Valves
Compact dual plate check valves with spring-assisted closure.
View details ↗
03 /

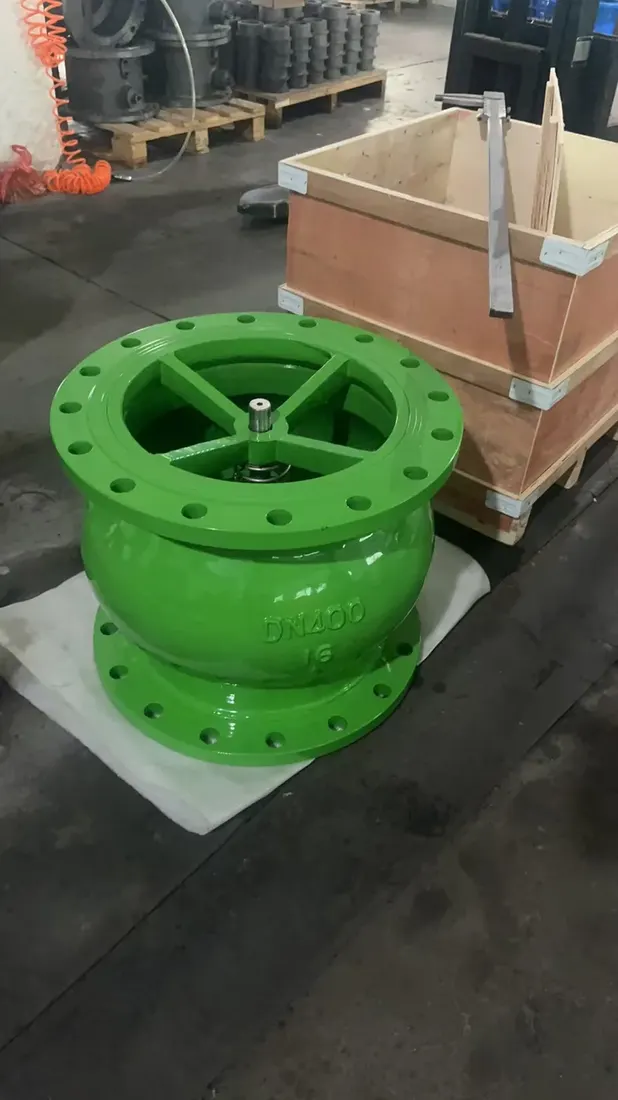

Silent Check Valves
Short-stroke, spring-assisted check valves for reduced closing impact.
View details ↗
04 /
Ball Check Valves
Free-moving ball closure for suitable wastewater and solids-bearing liquid duties.
View details ↗Product Description
Check valves operate automatically with the flow to limit reverse flow in a pipeline. Swing, double door, silent and ball check constructions use different closure mechanisms. Review the flow rate, pump stopping conditions, installation direction and fluid cleanliness before choosing the valve.
Design Description
- Automatic non-return operation without an external actuator
- Closure mechanism selected for the fluid and system dynamics
- Seat and moving-element materials matched to service conditions
- Installation orientation and minimum flow requirements checked for the selected design
- Closing response evaluated with the piping system where pressure transients are a concern
Model-specific documents
Request the applicable datasheet, dimensional drawing, material details and inspection documentation for your selected configuration.
